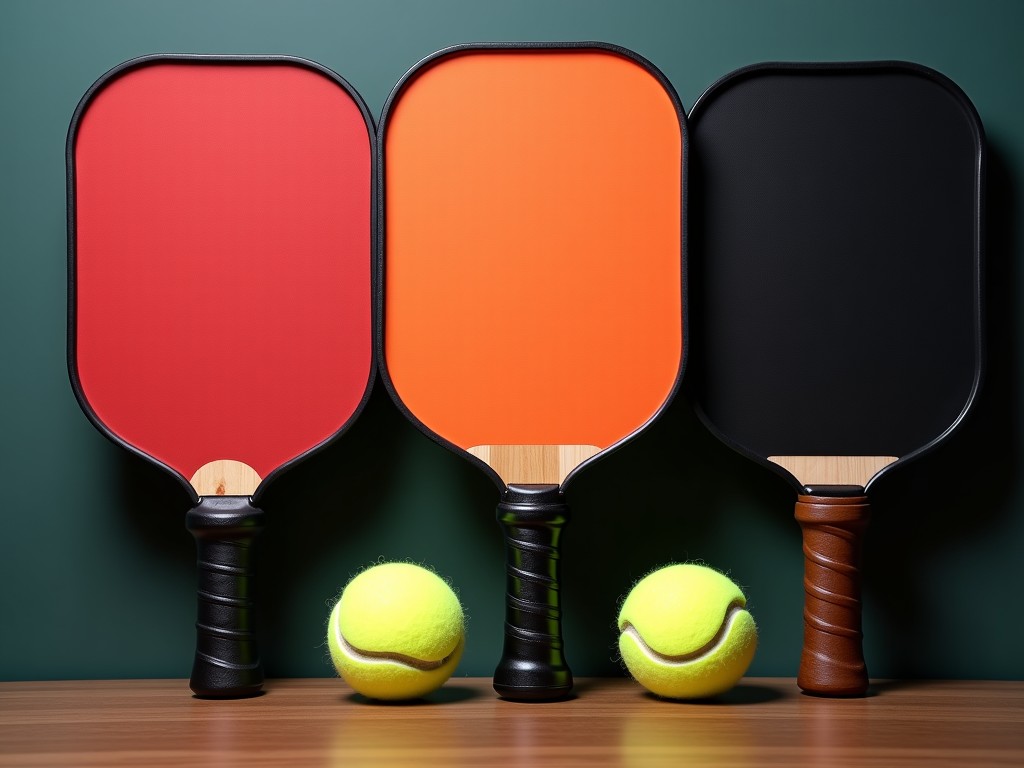

Wholesale Textured Thin Pickleball Paddles Factory
These paddles are engineered for high‑volume wholesale distribution, featuring a thin profile that reduces swing weight while maintaining a responsive hitting surface. The textured face is designed
Wholesale Textured Thin Pickleball Paddles
Product Overview
These paddles are engineered for high‑volume wholesale distribution, featuring a thin profile that reduces swing weight while maintaining a responsive hitting surface. The textured face is designed to enhance spin generation without compromising durability.
Material Selection
The paddle core typically uses a polypropylene honeycomb structure with a density ranging from 30 to 45 kg/m³, providing a balance of stiffness and shock absorption. The face material is a composite of fiberglass reinforced with a thin layer of carbon fiber, offering a tensile strength of approximately 350 MPa.
Surface texture is achieved through a controlled sand‑blasting process that creates a uniform roughness average (Ra) between 12 µm and 18 µm, measured per ISO 4287 standards.
Dimensional Specifications
Standard dimensions follow USAPA regulations: overall length 395 mm ± 3 mm, width 197 mm ± 2 mm, and thickness 0.9 mm to 1.2 mm measured at the throat. The grip circumference ranges from 102 mm to 110 mm, accommodating most adult hand sizes.
Manufacturing Process
Core sheets are cut to size using CNC routers with a tolerance of ±0.1 mm. The honeycomb layers are bonded with a low‑viscosity epoxy resin cured at 80 °C for 45 minutes to achieve a shear strength of at least 1.2 MPa.
The face laminate is vacuum‑pressed onto the core at 0.8 MPa pressure, ensuring uniform thickness and eliminating voids. Post‑curing, the paddle edges are milled to a radius of 0.5 mm to reduce chipping risk.
Finally, the textured finish is applied via automated sand‑blasting booths, followed by a UV‑stable clear coat that adds 5 µm to surface hardness.
Quality Control Philosophy
Each batch undergoes dimensional inspection using coordinate measuring machines (CMM) with a repeatability of ±0.02 mm. Surface roughness is verified with a portable profilometer; any paddle exceeding Ra = 20 µm is rejected.
Impact resistance is tested by dropping a 0.5 kg steel ball from a height of 1 m onto the face; acceptable paddles show no delamination or cracking after 10 repetitions.
Weight variation is kept within ±5 g across a lot, verified by analytical balances calibrated weekly.
Applications
These paddles suit recreational clubs seeking lightweight equipment that reduces player fatigue during extended play sessions. The thin profile also benefits junior programs where maneuverability is prioritized over raw power.
Wholesale distributors favor the consistent thickness and weight tolerances, which simplify inventory forecasting and reduce returns due to specification mismatches.
Customization Options
- Face graphics: full‑color sublimation or spot‑UV printing.
- Grip material: perforated polyurethane, cushioned silicone, or natural leather.
- Edge guard: PVC, rubber, or none for weight‑critical models.
- Core thickness: adjustable from 0.8 mm to 1.5 mm in 0.1 mm increments.
Typical Specifications
| Parameter | Typical Value | Notes |
|---|---|---|
| Length | 395 mm | USAPA compliant |
| Width | 197 mm | USAPA compliant |
| Thickness | 0.9 mm – 1.2 mm | Measured at throat |
| Weight | 190 g – 210 g | Includes grip |
| Surface Roughness (Ra) | 12 µm – 18 µm | ISO 4287 measurement |
| Core Density | 30 kg/m³ – 45 kg/m³ | Polypropylene honeycomb |
| Face Tensile Strength | ≈350 MPa | Fiberglass‑carbon composite |
Frequently Asked Questions
Can dimensions be customized?
Yes. Length, width, thickness, and grip circumference can be adjusted according to project requirements. Custom tooling may incur additional lead time.
What information is required before quotation?
We need the desired paddle dimensions, core thickness, face material preference, grip type, any graphics or branding details, and the target order quantity.
How is quality inspected?
Each lot undergoes CMM dimensional checks, surface roughness profiling, impact resistance testing, and weight verification. Acceptance criteria are documented in our QC plan.
What packaging methods are available?
Standard packaging includes individual poly‑bags placed in master cartons with corrugated dividers. For export, we offer heat‑shrink wrapped pallets with corner protectors and moisture‑barrier lining.
What is the typical production lead time?
Lead time ranges from 15 to 25 working days after final artwork approval, depending on order size and customization complexity.
Contact Us
For technical inquiries, quotation requests, or sample arrangements, please reach out via our contact form. Our engineering team will respond within one business day.
