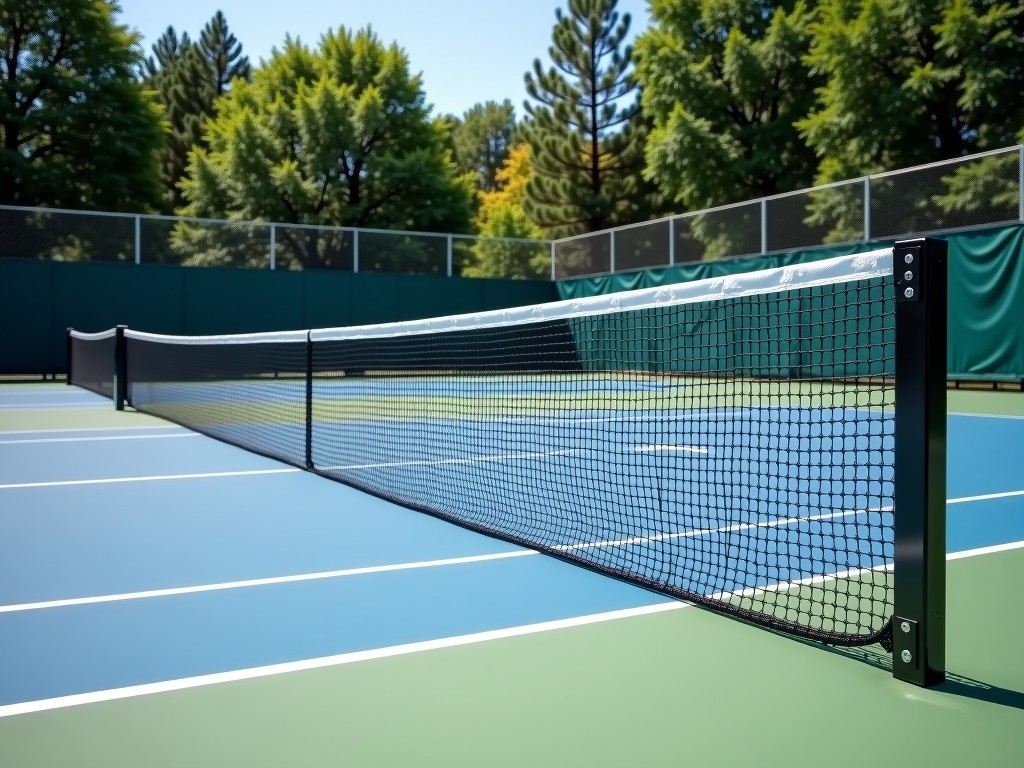

Wholesale Portable Pickleball Nets for Sale

Portable pickleball nets are engineered for rapid deployment on varied surfaces while maintaining the official dimensions required for sanctioned play. The design focuses on minimizing setup time, reducing transportation volume, and providing consistent net tension across the playing width.

Design and Materials

The primary frame utilizes extruded aluminum alloy 6063-T5 with a wall thickness of 1.2 mm, offering a tensile strength of approximately 210 MPa and a corrosion‑resistant anodized finish. Cross‑braces are formed from the same alloy, providing a moment of inertia that limits deflection under net load to less than 5 mm at mid‑span.

The net mesh is constructed from 2‑mm twisted polyethylene (PE) yarn, UV‑stabilized to retain >90 % of its break strength after 500 hours of simulated sunlight exposure. Mesh openings measure 45 mm square, complying with USAPA specifications for ball passage and visibility.

Dimensional Specifications

When assembled, the net spans 6.70 m (22 ft) between the outer edges of the posts. The height at the sidelines is 0.914 m (36 in), tapering to 0.864 m (34 in) at the center, matching the official pickleball net profile.

Each post incorporates a telescoping section that retracts to 0.45 m for transport, allowing the entire system to fit within a 0.30 m × 0.20 m × 0.15 m carton. The total packaged weight averages 9.5 kg, facilitating single‑person handling.

Setup and Portability

Deployment relies on a cam‑lock mechanism at each joint, requiring no tools and achieving full erection in under 90 seconds by two operators. The lock torque is preset to 2.5 Nm, ensuring joint stability without over‑tightening.

Integrated ground spikes (galvanized steel, 150 mm length) provide anchorage on grass or soil, while optional weighted bases (cast iron, 4 kg each) enable use on hard surfaces. Spike withdrawal force is rated at 350 N, sufficient to resist lateral displacement during play.

Performance Characteristics

Wind tunnel testing at 15 m/s shows a net deflection of less than 20 mm when the system is anchored with spikes, preserving playability. The aluminum frame exhibits a fatigue life exceeding 10,000 load cycles at 80 % of its yield stress, suitable for seasonal recreational use.

The polyethylene mesh retains flexibility down to -20 °C, preventing brittleness in cold climates, and resists mildew growth due to its non‑hydrophilic surface.

Quality Assurance

Each unit undergoes a three‑stage inspection: dimensional verification of post length (±2 mm), mesh tension measurement (target 180 N ±10 N), and functional testing of cam‑lock engagement (minimum 5 cycles without slip). Results are recorded against a statistical process control chart with Cp ≥ 1.33.

Material certificates for the aluminum alloy and PE yarn are available upon request, confirming compliance with RoHS and REACH standards.

Customization Options

Frame length can be adjusted in 0.25 m increments to accommodate alternative court sizes, with corresponding changes to net width and tension settings. Mesh color options include standard white, high‑visibility yellow, or custom pantone matches, subject to minimum order quantities.

Additional accessories such as removable scoreboard clips, carrying bags with reinforced handles, and anti‑theft locking pins can be integrated based on project requirements.

Applications

Community recreation centers benefit from the net’s low storage footprint, allowing multi‑purpose gyms to transition between basketball, volleyball, and pickleball without permanent fixtures.

School athletic programs utilize the portable system for after‑school clubs, where quick setup maximizes limited practice time and reduces wear on permanent court surfaces.

Tournament organizers select the net for outdoor events because its wind‑rated design maintains consistent play conditions across varying weather, minimizing match interruptions.

Configuration Comparison

Frequently Asked Questions

Can dimensions be customized for non‑standard courts?

Yes, the frame length and net width can be adjusted in 0.25 m increments; please provide the target playing area dimensions for a quotation.

What information is required before a price quote?

Required details include desired frame material grade, net mesh specifications, quantity, delivery destination, and any accessory needs such as weighted bases or carrying bags.

Which materials are available for the net?

Standard offering is UV‑stabilized polyethylene; optional nylon or polyester blends are available upon request for specific abrasion resistance requirements.

How is product quality verified before shipment?

Each batch undergoes dimensional inspection, tension testing, and functional lock verification, with a test report attached to the shipping documentation.

What packaging methods protect the nets during transit?

Units are packed in double‑wall corrugated cartons with interior foam corner protectors and polyethylene moisture barrier; palletization uses stretch film and edge boards for stability.

What is the typical production lead time?

Lead time ranges from 15 to 25 working days depending on order size and material availability; exact scheduling is confirmed at order acceptance.

How are samples arranged for evaluation?

Sample units can be dispatched via express freight; the customer covers shipping costs, which are credited toward a subsequent bulk order.

Get in Touch

For technical specifications, pricing, or to discuss a customized portable pickleball net solution, please reach out using the contact form below. Our engineering team will respond with a detailed quotation and lead‑time estimate within one business day.
