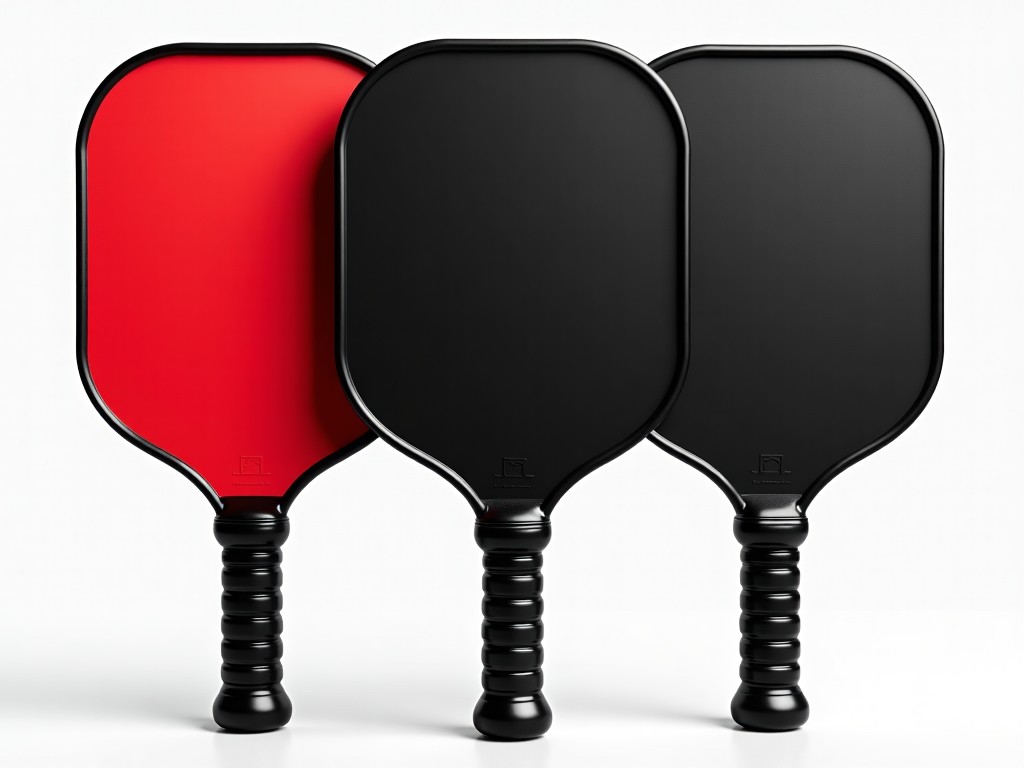

Product Overview

These paddles are engineered for players who have moved beyond the beginner stage and require a blend of control, power, and consistency. The OEM approach allows the paddle geometry, layup schedule, and finish to be tailored to a specific brand’s performance targets while maintaining repeatable production tolerances.

Intermediate players benefit from a paddle that offers a moderate swing weight, a balanced feel, and a responsive surface that translates spin effectively without excessive vibration.

Material Composition

The paddle core uses a unidirectional carbon fiber prepreg with a typical fiber volume fraction of 58 % ±2 %. The resin system is an epoxy formulated for a glass transition temperature above 80 °C, ensuring dimensional stability under repeated impact loads.

A thin overlay of woven carbon fiber provides isotropic stiffness in the face plane, while the edge is reinforced with a 2 mm thick aramid‑carbon hybrid tape to resist delamination during aggressive shots.

Mechanical Properties

Typical weight range for the finished paddle is 215 g ± 5 g, with a balance point located 195 mm from the butt end, yielding a neutral to slightly head‑light feel. The flexural modulus measured in a three‑point bend test averages 22 GPa, providing sufficient stiffness for power transfer while allowing a controlled amount of face flex for spin generation.

Impact resistance is evaluated via a standardized drop‑ball test; the paddle face shows no visible cracking after 50 impacts at 2.5 m/s, indicating a fatigue life suitable for seasonal play.

Design Features for Intermediate Play

The face dimensions conform to USAPA regulation (width 200 mm, length 400 mm) with a tapered throat that reduces aerodynamic drag during quick wrist flicks. The grip circumference is offered in 4.0 in and 4.25 in options, wrapped with a perforated polyurethane over‑grip that provides a moisture‑wicking surface.

A low‑profile edge guard, 1.5 mm thick, protects the paddle perimeter without altering the swing weight significantly. The surface finish is a matte UV‑cured coating that maximizes friction for spin while minimizing glare under indoor lighting.

Manufacturing Process

Prepreg sheets are cut to shape and stacked according to a programmed layup schedule that varies fiber orientation across the face, throat, and handle zones. The layup is then placed into a heated compression mold where pressure of 1.8 MPa and temperature of 150 °C are applied for 20 minutes to achieve full cure.

After demolding, the paddle undergoes CNC trimming to final dimensions, followed by edge‑guard installation and grip application. Each paddle receives a unique laser‑etched serial number for traceability.

Customization Options

• Paddle length adjustable from 390 mm to 410 mm in 5 mm increments
• Width options: 195 mm, 200 mm, 205 mm
• Throat geometry: standard, elongated, or widened for increased sweet spot
• Grip size: 4.0 in, 4.25 in, 4.5 in with optional over‑grip thickness
• Surface texture: matte, semi‑gloss, or custom laser‑etched pattern
• Graphics: full‑color sublimation, spot UV, or embossed logo

Quality Control Philosophy

Every batch is subjected to incoming material verification, including fiber areal weight and resin content checks via burn‑off testing. In‑process monitoring uses laser triangulation to confirm laminate thickness uniformity within ±0.1 mm.

Final inspection includes weight measurement (±2 g tolerance), balance point verification (±3 mm), and a dynamic stiffness test using a modal impact hammer. Paddles that deviate beyond defined limits are segregated for rework or scrap.

Applications

These paddles are suited for club leagues, recreational tournaments, and training sessions where players require reliable feedback to refine shot placement and spin generation. The balanced weight distribution supports both defensive dinking and aggressive drives, making the paddle a versatile tool for skill development.

Because the OEM model allows for brand‑specific cosmetic finishes, the same technical platform can be deployed across multiple market segments without re‑engineering the core structure.

Performance Comparison

Frequently Asked Questions

Can dimensions be customized?

Yes. Length, width, throat shape, and grip size are adjustable per the options listed above. Custom molds may be required for dimensions outside the standard range, which can affect lead time.

What information is required before quotation?

We need the target weight range, desired balance point, preferred grip size, any specific surface texture, and expected annual volume. Providing a sample or detailed drawing helps accelerate the quotation process.

How is quality inspected?

Each paddle undergoes weight, balance, and flexural stiffness checks. Additionally, a random sample from each lot is subjected to impact fatigue testing and visual inspection for delamination.

What packaging methods are available?

Standard packaging includes individual poly‑foam sleeves placed in corrugated cartons with corner protection. For export, we can provide heat‑sealed barrier bags and palletizing with strap reinforcement upon request.

What is the typical production lead time?

For stock‑configured paddles, lead time is 3‑4 weeks after tooling approval. Fully customized projects typically require 6‑8 weeks, including mold fabrication and sample validation.

Contact for OEM Inquiry

To discuss specifications, request a sample, or obtain a formal quotation, please reach out to our engineering team.
