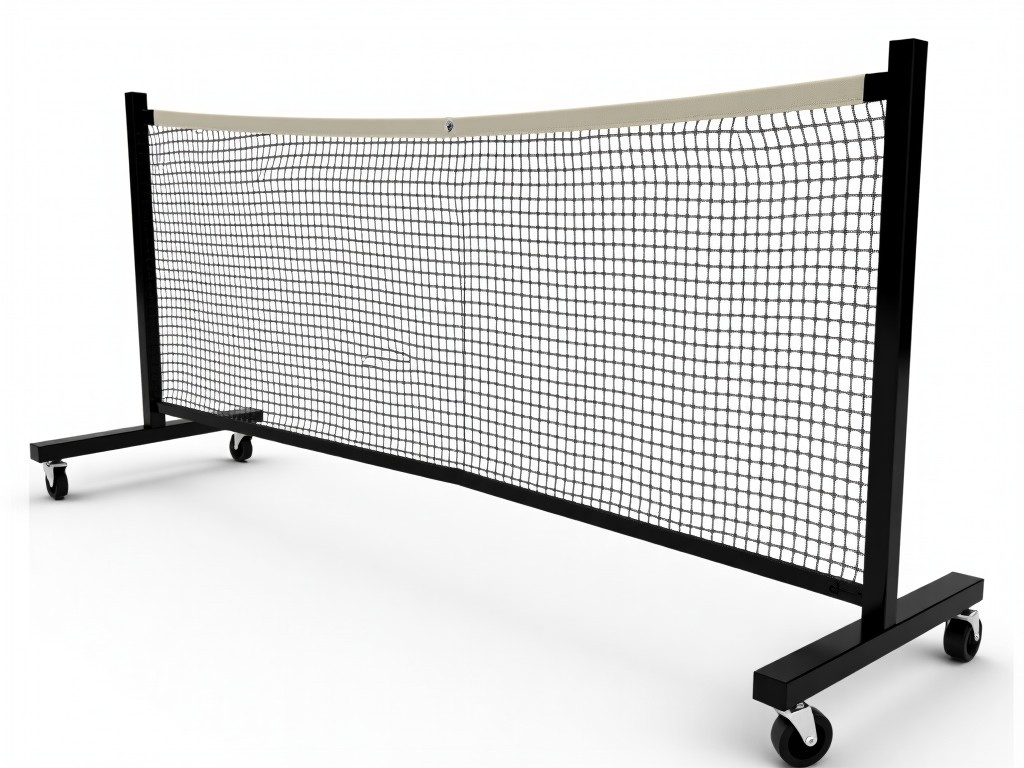

Factory Direct Portable Outdoor Pickleball Net on Wheels

Product Overview

This system consists of a collapsible aluminum frame, two lockable caster wheels, and a regulation‑size pickleball net designed for outdoor use. The frame folds to a compact footprint of 900 mm × 300 mm × 150 mm for transport, while the deployed playing area measures 6.10 m × 0.91 m net height at the sidelines and 0.86 m at the center, complying with USAPA standards.

All structural components are selected for corrosion resistance and UV stability, enabling year‑round operation in temperatures ranging from –20 °C to +50 °C. The net tension is maintained by a proprietary ratchet‑type tensioning system that allows adjustment from 0 kN to 2.5 kN without tools.

Frame and Wheel System

The main frame utilizes extruded 6061‑T6 aluminum alloy tubes with a wall thickness of 2.0 mm, providing a yield strength of approximately 275 MPa and a tensile strength of 310 MPa. Joint connections employ stainless steel pins (A2‑70) with shear capacity exceeding 15 kN per pin.

Each wheel is a 200 mm diameter polyurethane‑tread caster rated for a dynamic load of 150 kg and a static load of 300 kg. The wheel fork incorporates a sealed ball bearing (ABEC‑3) and a toe‑lock mechanism that resists lateral forces up to 0.5 kN when engaged.

• Frame weight: 12.5 kg (including net hardware)
• Wheel swivel range: 360° with lock‑position detent every 90°
• Overall deployed footprint: 6.40 m × 1.20 m

Netting Material Specifications

The net fabric is a UV‑stabilized high‑density polyethylene (HDPE) mesh with a denier of 1500 and a filament diameter of 0.25 mm. Mesh opening size is 45 mm × 45 mm, providing a ball‑stop efficiency of >98 % for a standard pickleball (diameter 74 mm).

Edge bindings are double‑stitched polyester webbing (width 38 mm) with a tensile strength of 25 kN, reinforced at each corner with a bar‑tack of 12 stitches per inch. The net is treated with a fluoropolymer coating that reduces water absorption to <0.5 % after 24 h immersion.

Portability and Setup

Deployment requires unlocking the wheel locks, extending the frame tubes via spring‑loaded pins, and tensioning the net using the integrated ratchet handle. Average setup time for a trained operator is 45 seconds, with a maximum of 90 seconds for first‑time users.

When folded, the unit fits within a standard utility vehicle cargo area (minimum interior dimensions 1000 mm × 400 mm × 200 mm) and can be moved by a single person using the integrated ergonomic handle located at the frame’s center of gravity.

Applications in Industrial and Recreational Settings

Beyond traditional court installations, the system serves as a portable barrier for safety zones in manufacturing facilities, providing a visible, impact‑resistant demarcation that can be repositioned as workflow changes.

In logistics warehouses, the net functions as a containment aid for loose‑item sorting stations, preventing cross‑contamination between SKUs while allowing easy visual inspection.

• Outdoor employee wellness courts (factory campuses)
• Temporary event spaces (trade shows, product launches)
• School and community recreation programs requiring quick‑setup equipment

Quality Assurance and Testing

Each frame undergoes a dimensional inspection using a coordinate measuring machine (CMM) with tolerance ±0.5 mm on critical lengths and angles. Wheel assemblies are subjected to a rotational fatigue test of 100,000 cycles at 60 rpm under a 120 kg load, with no measurable bearing wear.

Net tension is verified with a load cell calibrated to ±1 % accuracy; acceptance criteria require a minimum tension of 1.8 kN at the center point after 5 minutes of simulated play. UV resistance is assessed per ASTM G154 cycle 6, confirming <5 % loss in tensile strength after 1000 h exposure.

Customization Options

Frequently Asked Questions

Can the net dimensions be altered for non‑standard courts? Yes, the net width and height can be customized within ±10 % of regulation sizes; specify required dimensions during quotation.

What information is needed to obtain a quote? Provide desired frame material, wheel specification, any custom net dimensions, finish preference, and order quantity.

How are export shipments protected? Units are packed in triple‑wall corrugated cartons with internal foam corner protectors and moisture‑barrier lining; palletized shipments include stretch‑film wrapping and corner boards.

What is the typical production lead time? Standard configurations ship within 10‑12 business days after receipt of purchase order; customized orders add 5‑7 days for tooling and finish.

Call to Action

To discuss specific requirements, request a detailed quotation, or arrange a sample unit, contact our engineering team via the inquiry form.
