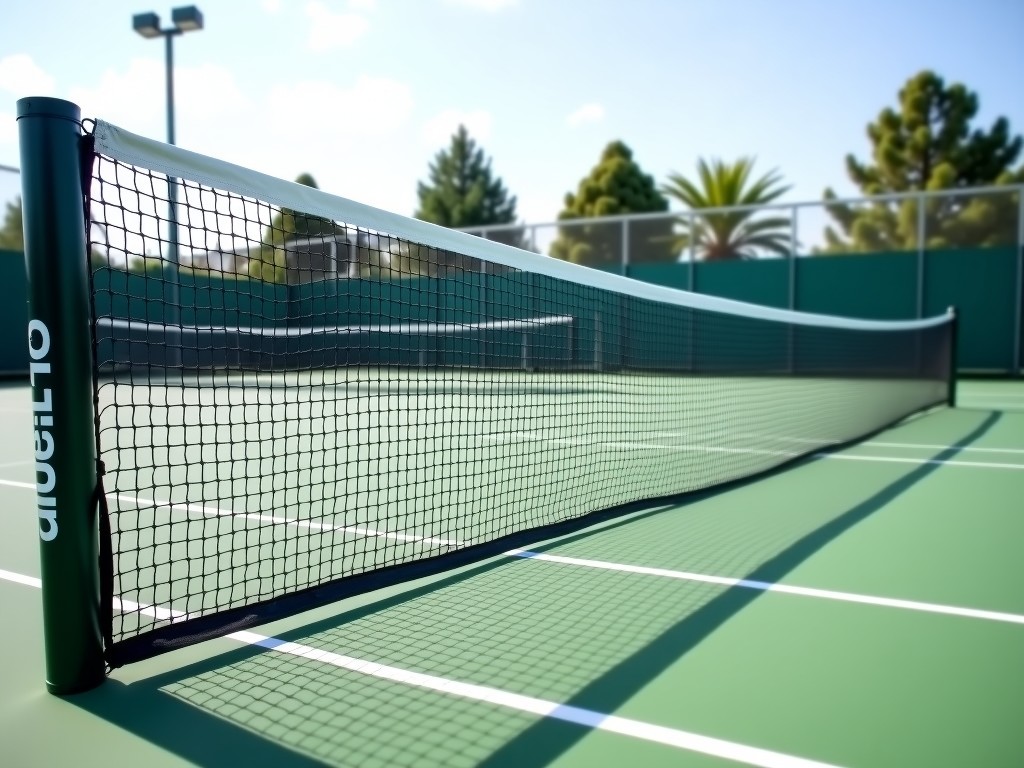

Heavy Duty Outdoor Pickleball Net – China Supplier
The net system is designed for permanent outdoor courts exposed to direct sunlight, rain, and temperature fluctuations from -20 °C to +50 °C. Primary load‑bearing components use galvanized steel posts with a minimum yield strength of 350 MPa, ensuring resistance to deformation under wind pressures up to 150 Pa.
Key Technical Specifications
| Parameter | Typical Value |
|---|---|
| Net height (official) | 0.914 m at center, 0.991 m at sidelines |
| Mesh opening | 45 mm square, conforms to USAPA standards |
| Net cord diameter | 3 mm high‑tenacity polyester, UV‑stabilized |
| Breaking strength of cord | ≥ 3500 N per strand |
| Post height above ground | 1.07 m (adjustable ±25 mm) |
| Base plate dimensions | 300 mm × 300 mm × 12 mm hot‑dip galvanized steel |
Engineers specify the net cord material based on accelerated weathering tests (ASTM G154) showing less than 5 % tensile loss after 1500 hours of UV‑B exposure. The galvanized coating on posts exceeds 85 µm thickness, providing a corrosion rate below 0.1 mm/year in C3 environments per ISO 9223.
Material Construction
- Net body: UV‑stabilized polyester multifilament, density 1.38 g/cm³
- Edge binding: double‑stitched polyester tape, width 25 mm, tensile strength 2000 N
- Posts: S235JR hot‑rolled steel, hot‑dip galvanized to ISO 1461
- Base plates: ASTM A36 steel, punched for anchor bolts, galvanized
- Hardware: M10×80 mm galvanized bolts, nylon lock nuts, washers
Field installations demonstrate that the net maintains tension within ±5 mm of setpoint after 200 hours of continuous wind loading at 12 m/s, verified by on‑site laser measurement. This stability reduces the need for frequent re‑tensioning during tournament play.
Typical Applications
- Public park courts requiring low‑maintenance, corrosion‑resistant equipment
- School sports facilities where safety standards demand rounded edges and break‑away hardware
- Private club installations with custom branding options on net tapes
- Temporary event venues needing quick‑release anchoring systems
- Coastal installations where salt‑spray resistance is critical
The modular design allows the net to be detached from posts without tools, facilitating seasonal storage or court resurfacing. Anchoring options include embedded concrete sleeves, surface‑mounted base plates with chemical anchors, or portable weighted bases for non‑penetrating surfaces.
Quality Assurance Philosophy
Each production lot undergoes tensile testing of net cords according to ISO 2062, with acceptance criteria of ≥ 3400 N average breaking strength. Visual inspection follows AQL 2.5 for stitching defects, and dimensional verification uses calibrated laser gauges with ±0.5 mm tolerance.
Post‑galvanizing thickness is measured via magnetic induction on every tenth part, ensuring compliance with the 85 µm minimum. Final assembly includes a functional load test simulating 150 Pa wind pressure, recorded for traceability.
Customization Options
- Net height adjustment range: ±50 mm via telescoping post sections
- Custom logo printing on edge tape (screen print, max 2 colors, area ≤ 150 cm²)
- Alternative cord materials: UV‑stabilized polyethylene or aramid blend
- Post finish: powder‑coated RAL colors in addition to galvanizing
- Anchor types: concrete inserts, ground spikes, or weighted sandbags
Customization requests are evaluated for structural impact; for example, increasing net height beyond 1.0 m requires reinforced post wall thickness from 2.5 mm to 3.2 mm to maintain buckling resistance under specified wind loads.
Packaging and Shipping
Nets are rolled on a 150 mm diameter core, wrapped in UV‑protected polyethylene film, and placed in double‑wall corrugated cartons with 150 gsm kraft liner. Each carton includes a silica gel packet to limit moisture ingress during transit. Standard pallet configuration holds 20 cartons (≈ 450 kg) and is secured with PET strapping.
Export shipments comply with ISPM‑15 wood‑free packaging requirements, and a full set of installation drawings, torque specifications, and maintenance checklist is enclosed in a sealed PVC pocket inside the master carton.
Frequently Asked Questions
- Can the net dimensions be customized? Yes, height and width can be adjusted within the limits of post strength and tensioning hardware; exact values are confirmed during quoting.
- What information is required before quotation? Court dimensions, post embedding preference (embedded or surface‑mounted), desired net color, and any branding specifications.
- Which materials are available for the net cord? Standard UV‑stabilized polyester; optional polyethylene or aramid blends available upon request.
- How is quality inspected? Tensile testing of cords, zinc thickness measurement on posts, visual stitching inspection, and dimensional verification per lot.
- What packaging methods are available? Standard corrugated cartons on pallets; custom crating or reusable containers can be arranged.
- How are export shipments protected? Moisture‑barrier film, silica gel, ISPM‑15 compliant packaging, and corner protectors on pallets.
- What is the typical production lead time? 3‑4 weeks for standard configurations; custom orders add 1‑2 weeks depending on complexity.
- How are samples arranged? Sample nets and post sections can be shipped via express freight; customer covers shipping costs unless otherwise agreed.
For detailed technical datasheets, CAD models, or to discuss specific project requirements, please contact our engineering team.
